日本三荣空气绞车

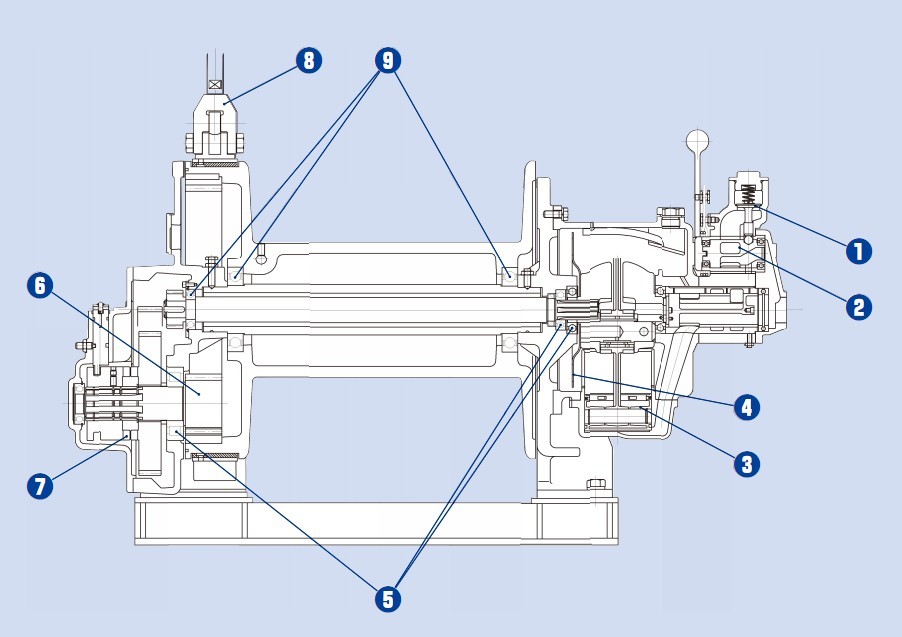

① POPPET/SPOOL VALVE is used for the control valve to eliminate air leakage.

② Reverse revolution is available.VALVE HANDLE operation allows free handing of the load,as air flows into the control valve.

③ strong RADIAL PISTON AIR MOTR is built in.

④ OIL DISC in the SEALED CRANK CASE contains oil bath lubricates all sliding parts.

⑤ BALL/ROLLER BEARINGS minimize friction loss.

⑥ Set-up reduction ratio works on rope pull and rope speed.

⑦ CLAW CLUTCH mechanism allows safe,accurate handling in locked ON/OFF positions.

⑧ BAND BRAKE manual or automatic.

⑨ SEALED BALL BEARINGS completely prevent oil leakage from the casings.

如何选择

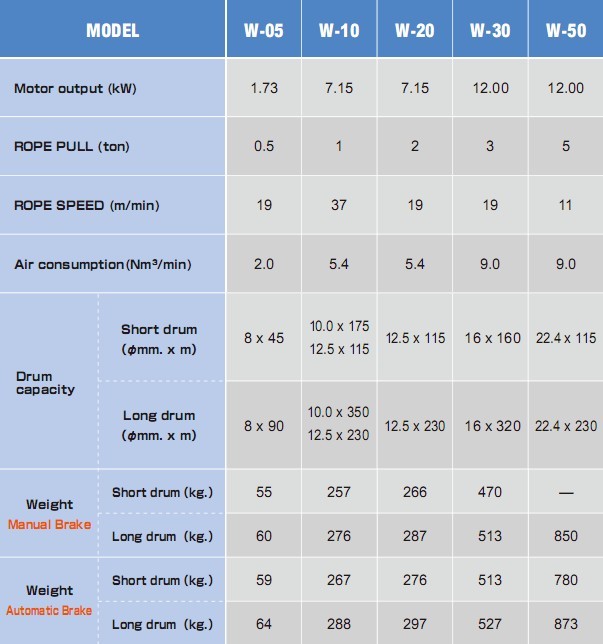

性能规范

max.output数据,证明了空气压力供应0.6兆帕

空气压缩机

should be capable of suppling air pressure（at 0.6 mpa）covering 130 more than air consumption.
in case of continuous operation.

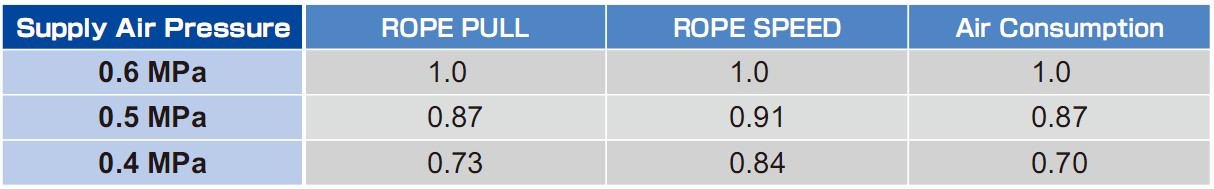

if supply air pressure is less than 0.6 mpa，use the following multiplied ratio to obtain calculated specifications

型号提供

选择指南

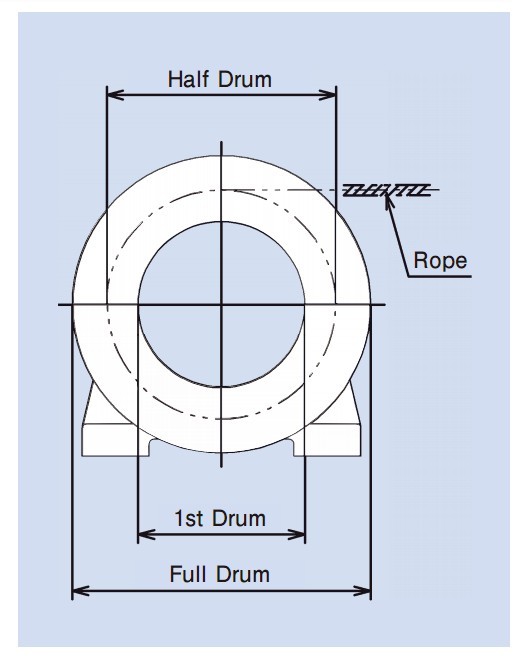

1-⑴绳子拉(能力)和绳索速度

that are major factors differ from each other according to how much rope is on the drum.

The first wrap/layer of rope on the drum receives its highest power at the slowest speed.

Full drum is up to maximum speed with lowest power.

Winch is of Half Drum to be

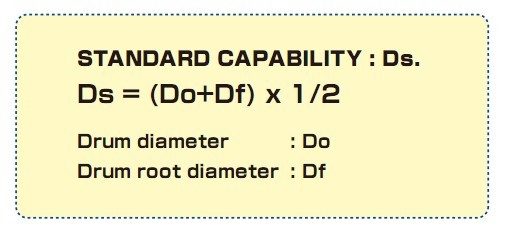

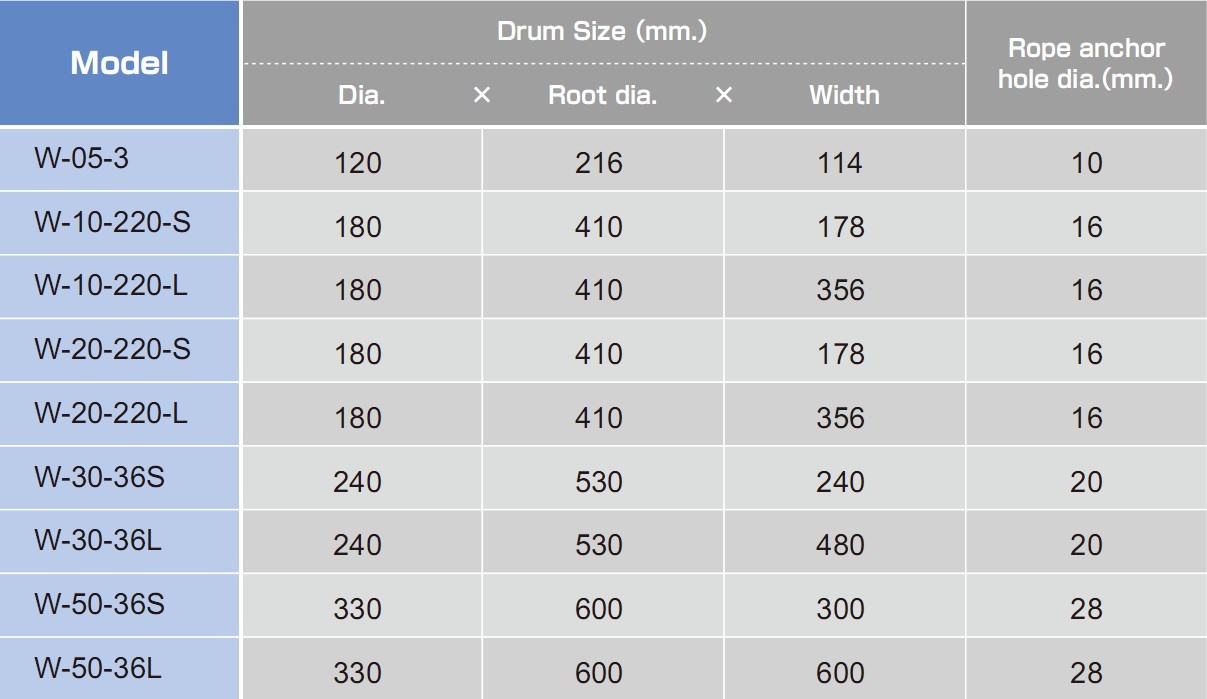

1-⑵鼓的大小

绳的选择

1-⑴For safe working load,five(5）times as much BREAKING STRENGTH rope as load is recommended.

1-⑵ 绳子的最大长度

直接远程控制
